最新產品

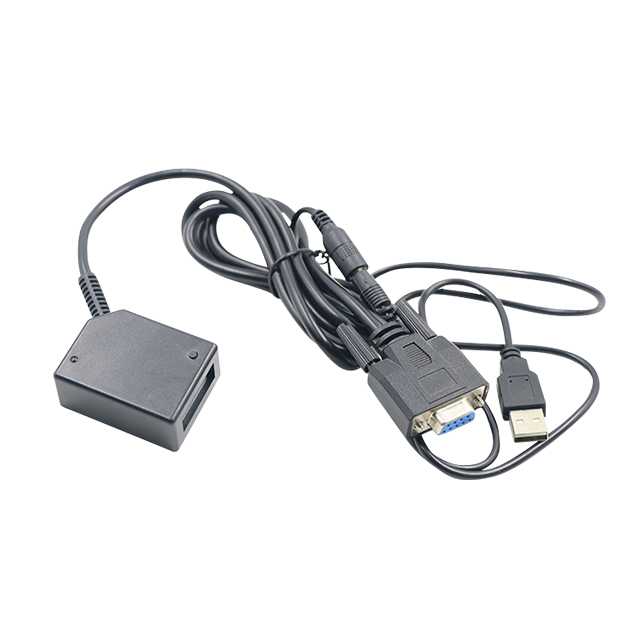

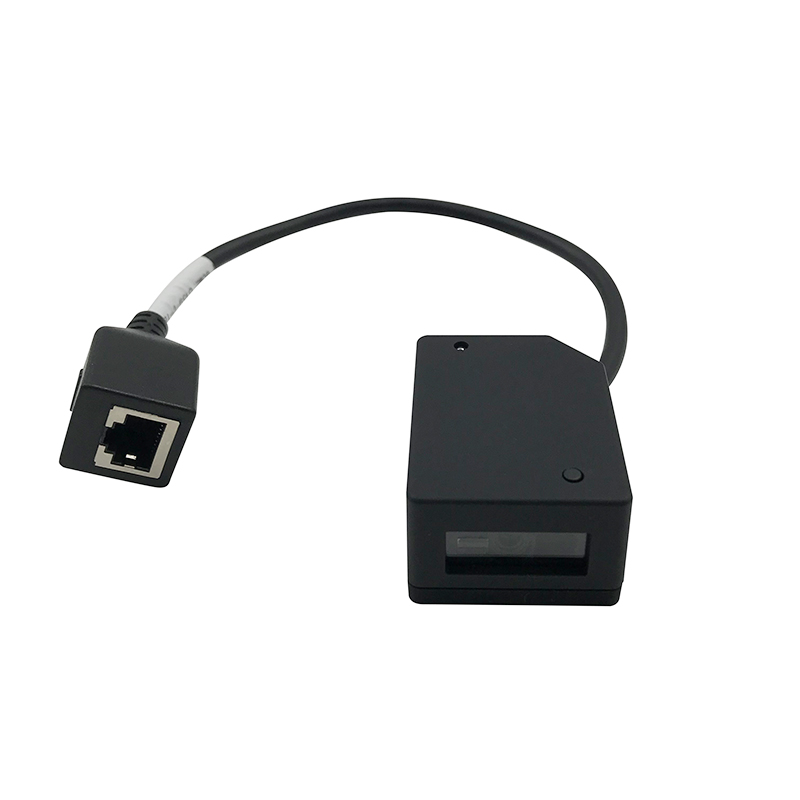

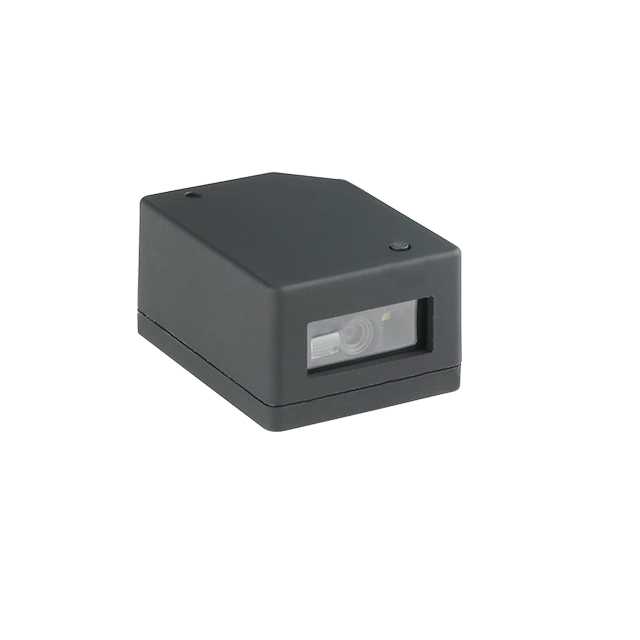

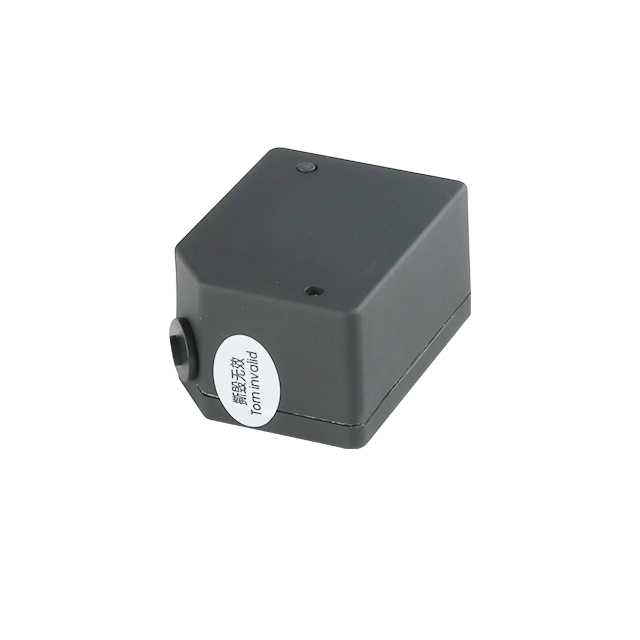

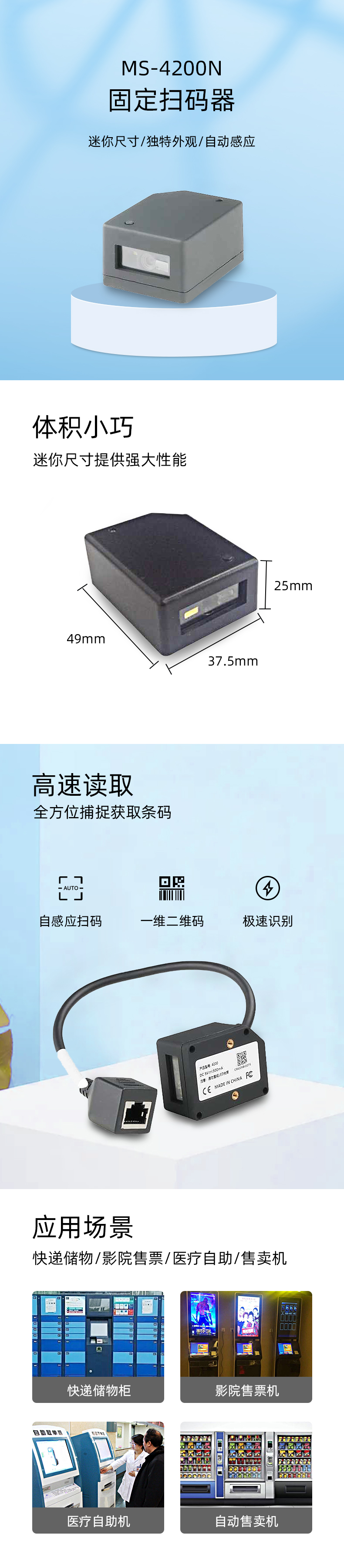

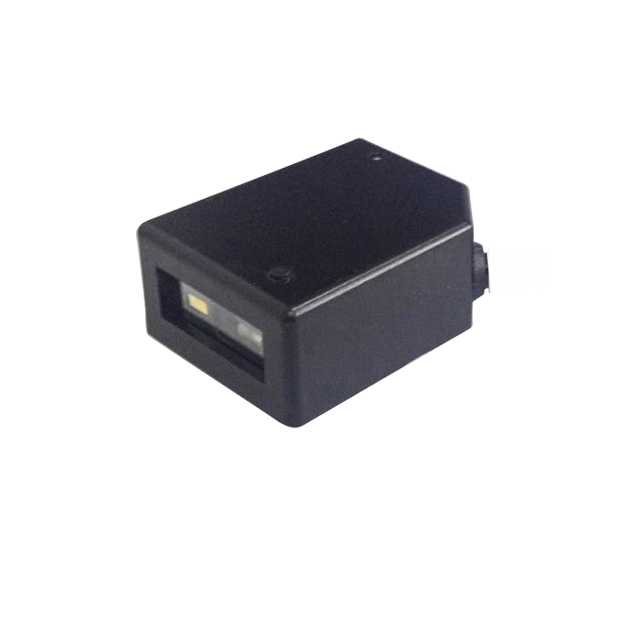

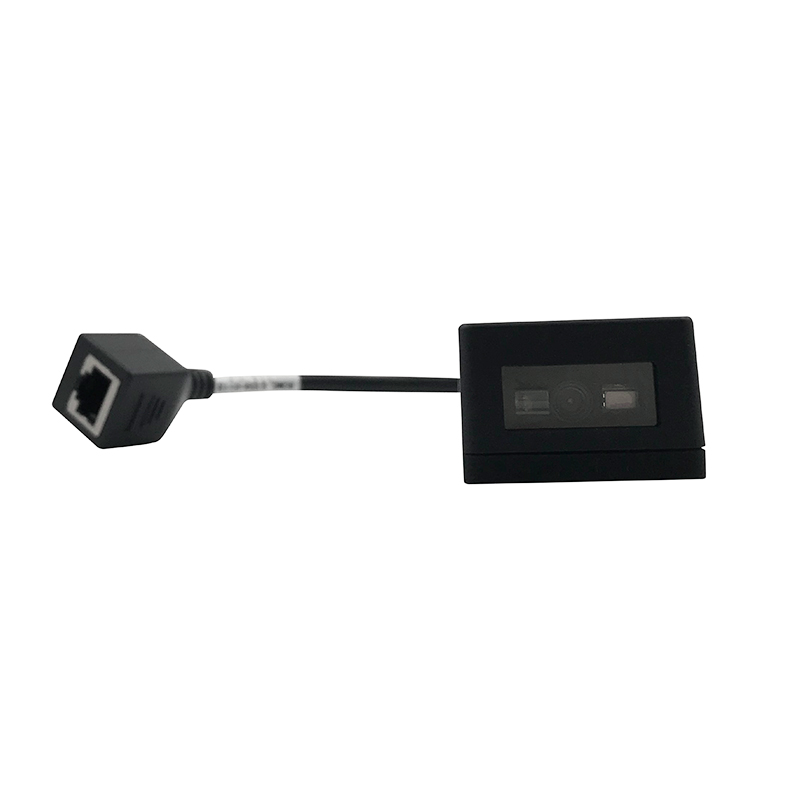

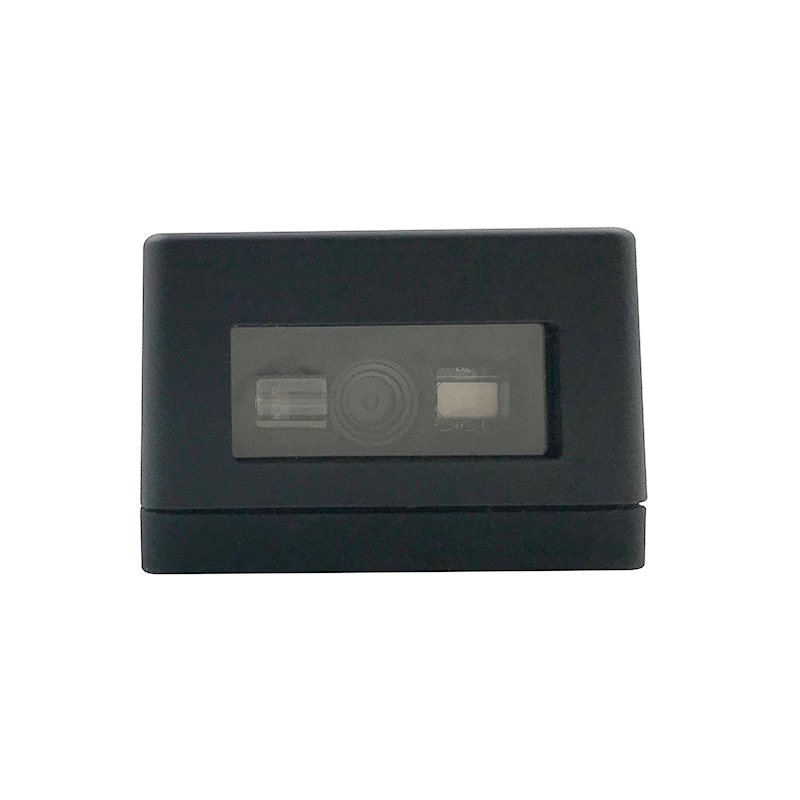

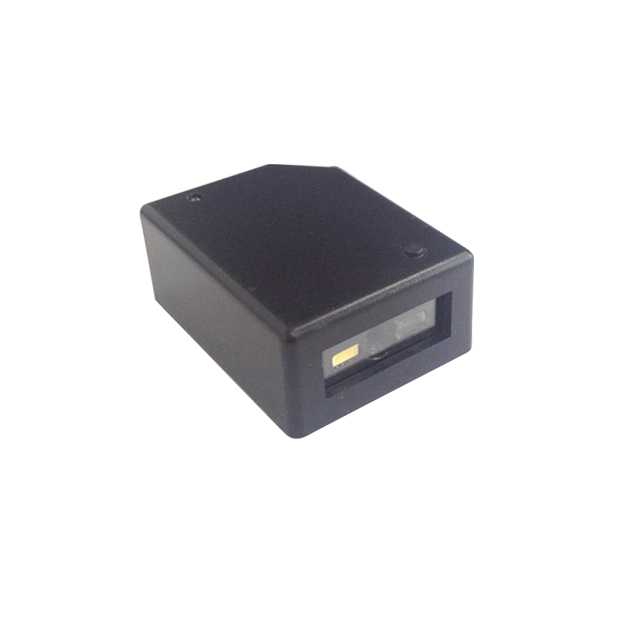

二維碼掃描器MS-4200N

美松嵌入式二維碼條碼掃描器
1.兼容紙質和電子屏,一維和二維條碼均可識讀
2.自帶補光燈掃描基準線,更易掃面單類紙質條碼
3.體積非常小巧,非常適合手持機和空間狹小情況下使用,自帶蜂鳴器提醒
  • 產品詳情
  • 產品參數



物理特性/Physical Characteristics

尺寸 Dimensions:

49mm x 37.5mm x25mm

重量 Weight:

37g

電壓 Voltage:

5 VDC +/-10% @ 400 mA

性能指標/Performance Characteristics

傳感器像素 Image (Pixels):

640 pixels (H)x 480 pixels (V)

光源 Light Source:

Aiming: 617 nm LED; illumination: 6500K LED

視場角 Field of View:

45°(H) , 35°(V)

旋轉傾斜偏轉 Roll / Pitch / Yaw:

360°, ±65° , ±60°

打印對比度Print Contrast:

25% minimum reflective difference

接口支持 Interfaces Supported:

USB,RS232

運動容差Motion Tolerances:

up to 15 cm per second

解碼能力/Symbology Decode Capability

一維條碼/1-D:

UPC, EAN, Code128, Code 39, Code 93, Code11, Matrix 2 of 5, Interleaved 2 of 5, Codabar, MSI Plessey, GS1 DataBar, China Postal, Korean Postal, etc.

二維條碼/2-D:

PDF417, MicroPDF417, Data Matrix, Maxicode, QR Code, MicroQR, Aztec, Hanxin, etc.

用戶環境參數/User Environment

工作溫度 Operating Temperature:

0°C to 50°C

存儲溫度 Storage Temperature:

-40°C to 70°C

濕度 Humidity:

0% to 95% relative humidity,non-condensing

抗震性 Shock Specifications:

Designed to withstand 0.5m drops

環境光免疫 Ambient Light Immunity:

100,000 Lux.

解碼范圍/Decode Ranges

Code39(5mil)

40mm-90mm

100%upca(13mil)

60mm-180mm

1D Minimal Resolution

4mil

Performance may be impacted by bar code quality and environmental conditions
