最新產品

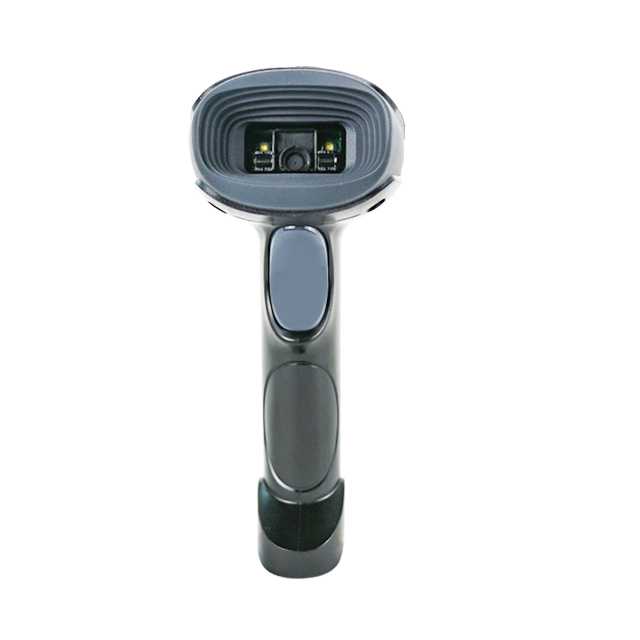

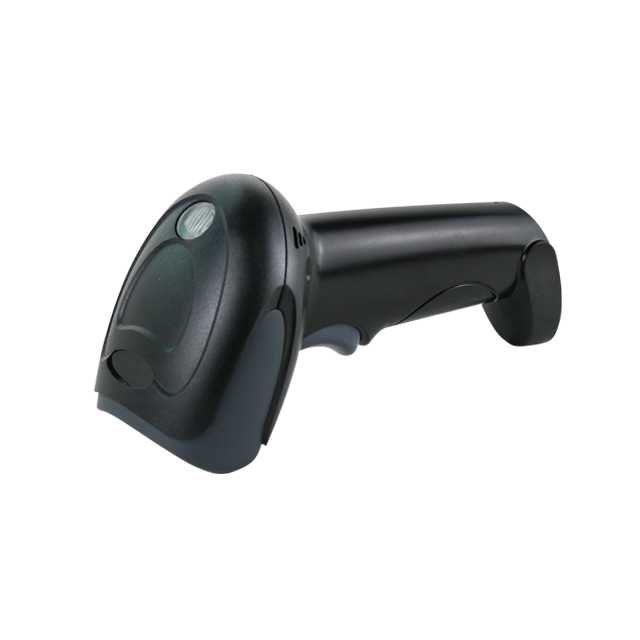

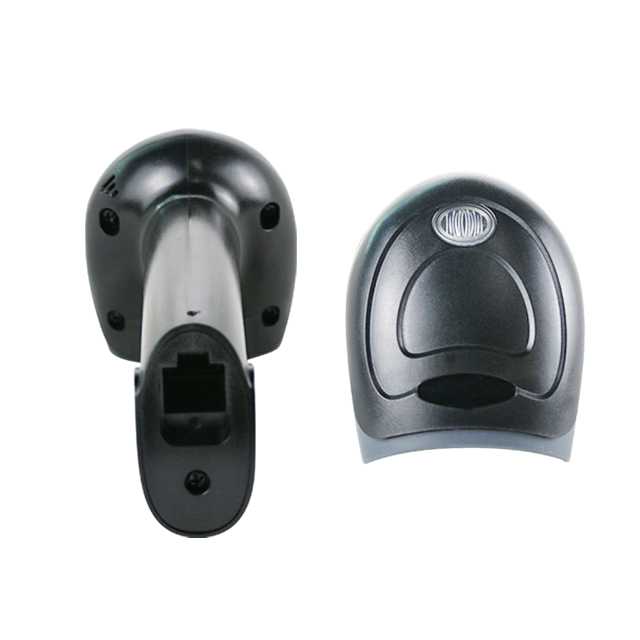

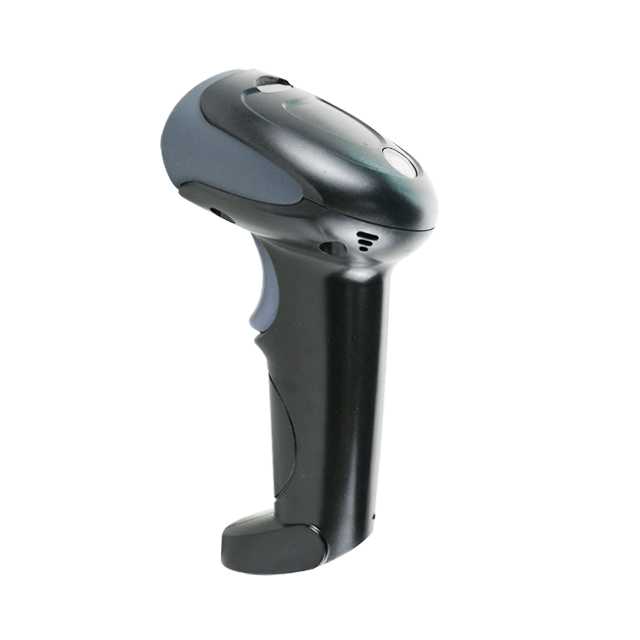

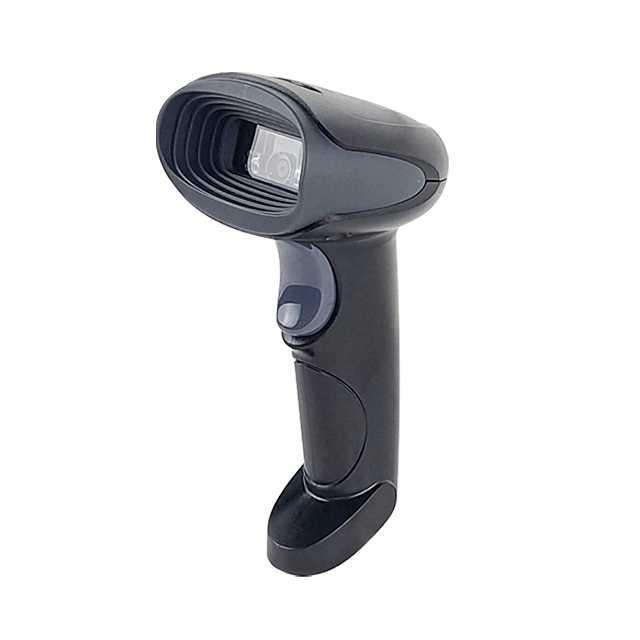

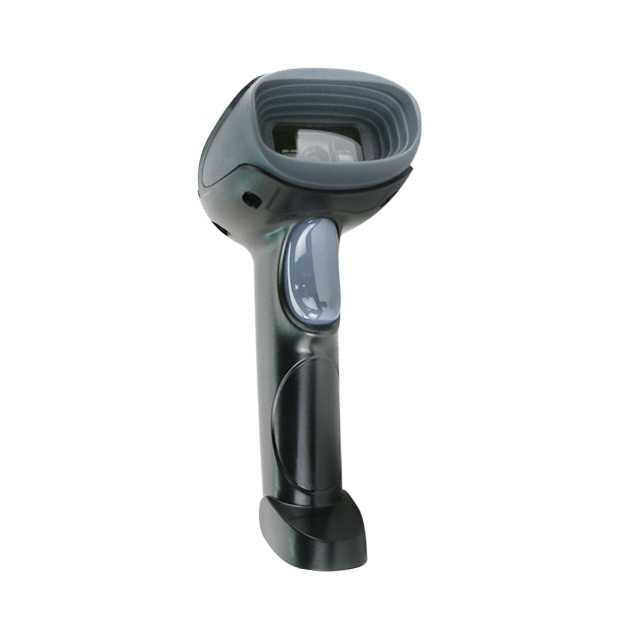

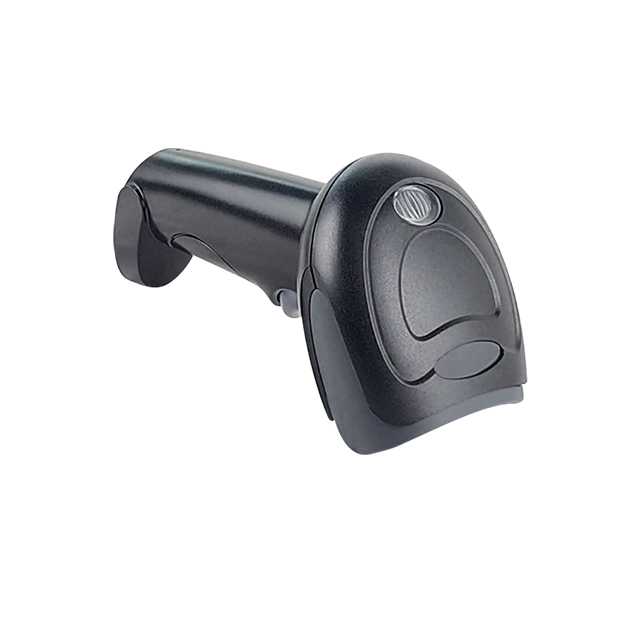

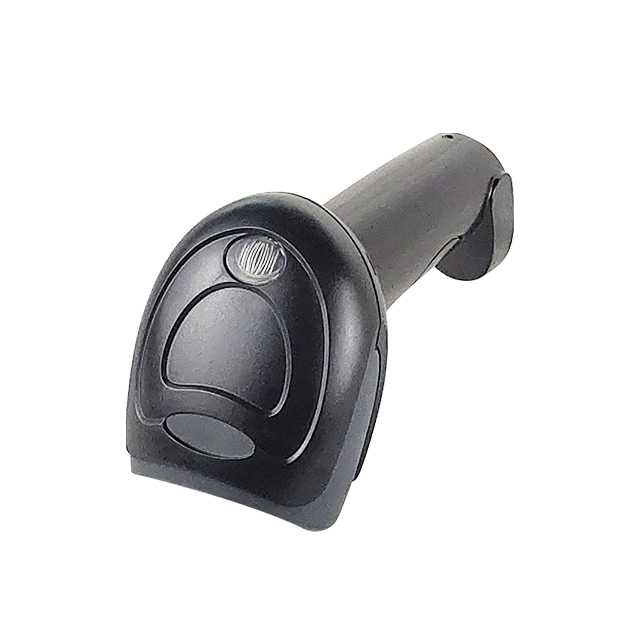

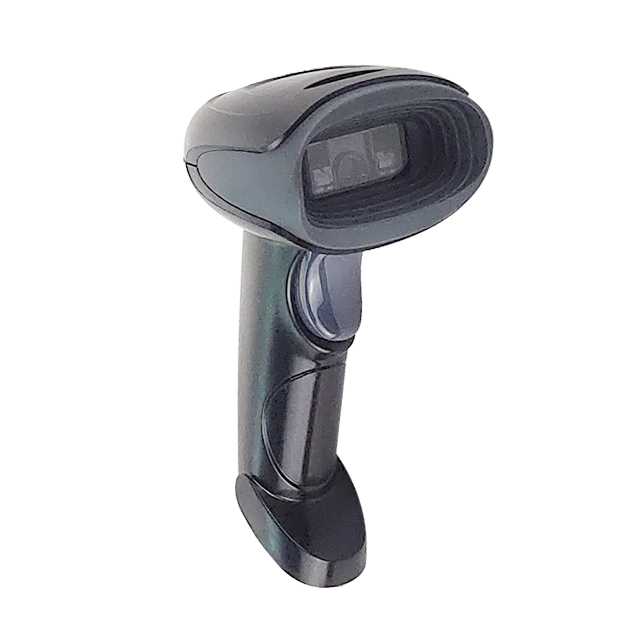

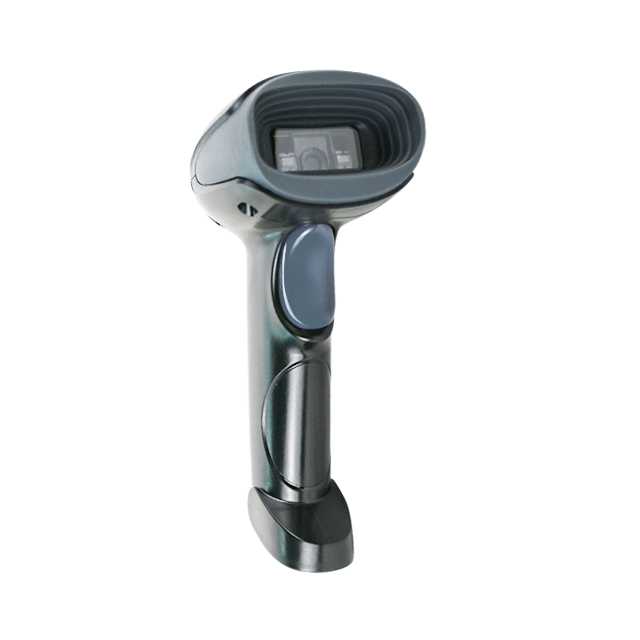

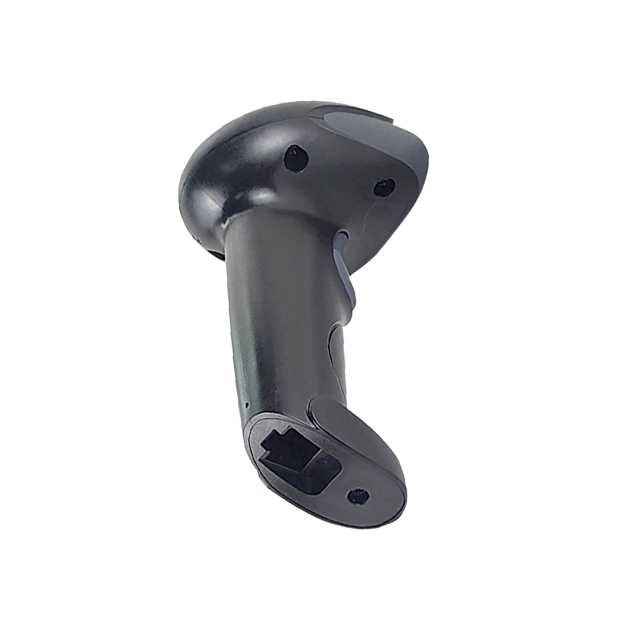

二維碼有線掃描槍MS-6200

MS-6200H百萬像素掃描槍?zhuān)阅芸梢赃_(dá)到霍尼1900GHD 百分之95以上
  • 產品詳情
  • 產品參數



物理特性/Physical Characteristics

尺寸 Dimensions:

159.99mm x 69.38mm x107.61mm

重量 Weight:

141g

電壓 Voltage:

5V

開機電流 Starting Current:

112mA

待機電流 Stand-by Current:

75.8mA

工作電流 Work Current:

136mA

性能指標/Performance Characteristics

傳感器像素 Image (Pixels):

640 pixels (H)x 480 pixels (V)

光源 Light Source:

(Aimer) Red color LED; (Illumination) White color LED

視場角 Field of View:

28°(Horizontal),20°(Vertical)

旋轉傾斜偏轉 Roll / Pitch / Yaw:

360°, ±65° , ±65°

打印對比度Print Contrast:

20% minimum reflective difference

接口支持 Interfaces Supported:

USB、RS232(選配)

運動容差Motion Tolerances:

>0.4m/s

解碼能力/Symbology Decode Capability

一維條碼/1-D:

Codabar、Code 39、Code 32 Pharmaceutical (PARAF)、Interleaved 2 of 5、NEC 2 of 5、Code 93、Straight 2 of 5 Industial、Straight 2 of 5 IATA,Matrix 2 of 5,Code 11、Code 128、GS1-128、UPC-A、UPC-E、 EAN/JAN-8、EAN/JAN-13、MSI、GS1 DataBar Omnidirectional、GS1 DataBar Limited、GS1 DataBar Expanded、China Post(Hong Kong 2 of 5)、Korea Post.

二維條碼/2-D:

Codeblock A、Codeblock F、PDF417、Micro PDF417、GS1 Composite Codes、QR Code、Data Matrix、 MaxiCode、Aztec、HANXIN.

默認開啟碼制:

Codabar、Code39、Interleaved2of5、NEC2of5、Code93、Code128、GS1-128、UPC-A、UPC-E0、EAN/JAN-13、 EAN/JAN-8、GS1-DataBar、PDF417、QR、DM、Aztec

用戶環境參數/User Environment

工作溫度 Operating Temperature:

-20°C to 60°C

存儲溫度 Storage Temperature:

-30°C to 70°C

濕度 Humidity:

5% to 95% relative hum idity,non-condensing

抗震性 Shock Specifications:

Designed to withstand 1.2m(5’) drops

環境光免疫 Ambient Light Immunity:

0-100,000 Lux.

解碼范圍/Decode Ranges

Code39(5mil)

4-20cm

Code39(13mil)

5-40cm

QR(20mil):

3-37cm

DM(15mil):

3-20cm

Performance may be impacted by bar code quality and environmental conditions
